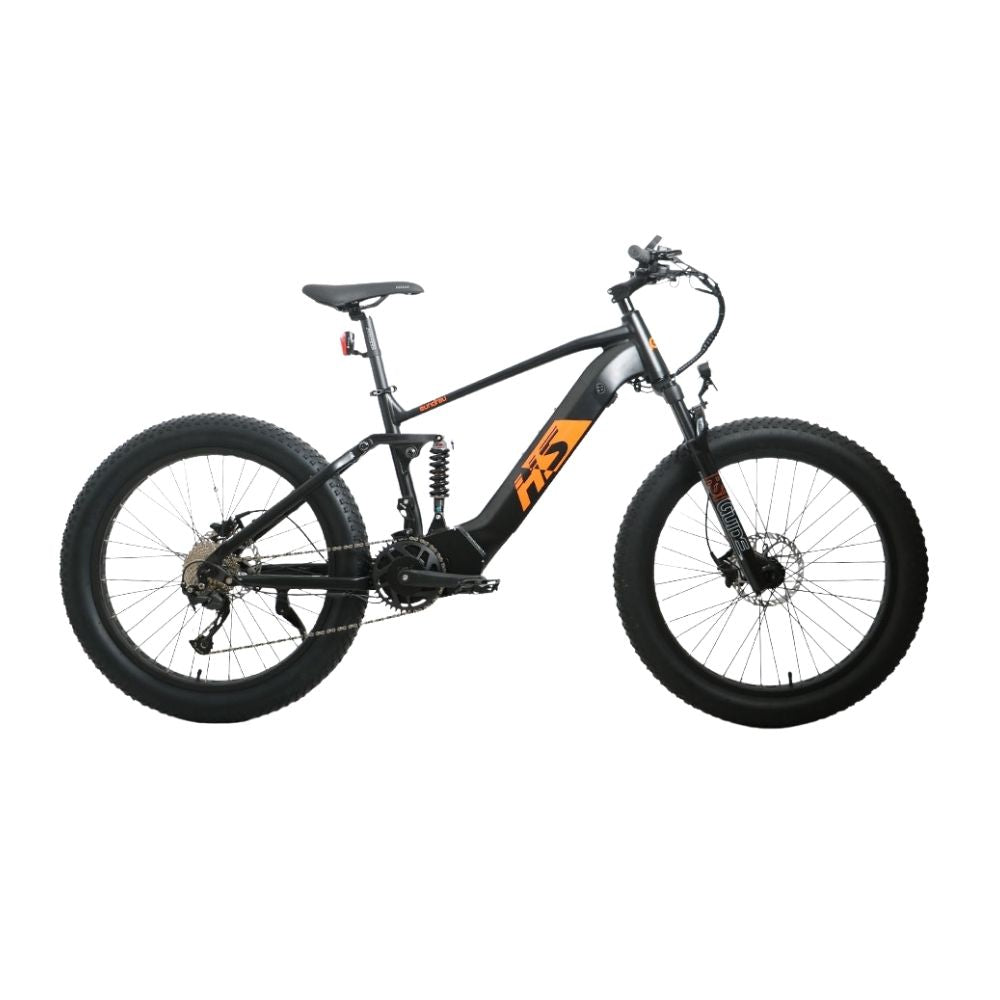

Eunorau FAT-HS 48V1000W 26'' Fat Tire All Terrain Electric Mountain Bike

BATTERY ACCESSORIES:

>>> Primary Battery (In-Frame): 48V 15Ah or 17Ah BATTERY (for Replacement & Upgrades)

>>> Secondary Battery (Downtube): 48V 14Ah or 17Ah BATTERY (for Extending Range)

EBIKE INVENTORY NOTICE:

IN STOCK at the main warehouse. It will take 5-10 days to bring in from the main warehouse. Please be advised of the additional wait when ordering this ebike.

DESCRIPTION:

The Eunorau FAT-HS bike is a monster of an electric mountain bike. Whether you’re hitting the trails to explore or heading out on a hunting or fishing trip, the FAT-HS will impress. Built with a powerful 1000W mid-drive motor, dual suspension and dual battery capacity, the FAT-HS has the specs to take on the most extreme terrains or even pull a trailer. Due to the mid-drive motor, the FAT-HS better utilizes the 9-speed Shimano drive train for extra torque or speed to deal with steep hills, deep mud, and thick snow. Add in the ample treads of Kenda 4-inch fat tires and the FAT-HS is a true all terrain electric trekker.

Eunorau, established in 2010, has over a decade of electric bike manufacturing experience. As the name suggests (EU-NOR-AU), has a strong distributer network across Europe, North America and Australia. They are known for premium quality ebikes and ebike conversion kits, but especially their line of fat tire ebikes. Phoenix Fitness is an authorized dealer of Eunorau products in Canada.

KEY FEATURES:

  • MID MOTOR, DUAL SUSPENSION, DUAL BATTERY: Hosting a 1000W mid drive motor with 160Nm of torque and a max speed of 48 km/h the FAT-HS is powerful. Dual suspension, with a RTS front fork and rear suspension, takes the shock out of a hard trail allowing you more energy to ride faster and better. While the dual battery capability gives the FAT-HS that extra range needed for extreme adventures.
  • FAT TIRE TRACTION:  26" * 4.0" Kenda Krusade Sport tires have a deep, spacious tread great for grabbing, draining and discharging loose terrain. These fat tires adapt expertly to snow, sand, mountain trails and cross-country trekking. Built with K-Shield technology, a layer of aramid and ceramic particles under the tread, the Krusade Sport fat tires are protected from punctures and exhibit an increased lifespan.
  • REMOVABLE BATTERY: Having a removable battery system is a game changer offering unmatched convenience when re-charging. With a simple twist of a key, remove the battery to charge. The standard 48V/14Ah lithium-ion battery can be upgraded to 17Ah for extended range. An optional second battery can be installed to double the battery capacity of the bike, up to 17Ah.
  • SHIFTING: With this Shimano 9-speed freewheel, a large cog benefits up-hill riding, while a smaller cog is best for high-speed riding. Speed can be easily adjusted with the pedal-assist system. Furthermore, the FAT-HS mid-drive motor can utilize the gearing to increase speed and torque.
  • RELIABILITY: Eunorau-designed Hydraulic 180mm disc brakes are a more sensitive and efficient braking system compared to mechanical ones. When riding in harsh conditions, hydraulic brakes stop swiftly and can be relied upon to ensure your safety. Integrated with a motor cut-off sensor, braking is smooth and controlled.
  • SUGGESTED RIDER HEIGHT: 160 cm – 193 cm (5’3” – 6’4”)



FAT-HS

SPECIFICATIONS

SYSTEM

MOTOR

48V/1000W BAFANG M615 mid motor (Cadence Sensor)

BATTERY

Lithium-ion, SAMSUNG 48V/14Ah (Upgradeable to 17Ah) + Optional 2nd Battery (14 or 17Ah)

CHARGER

2.0A Smart Charger (US/Canadian Standard)

DISPLAY

CDC6 LCD

CONTROLLER

48V/30A

PEDAL ASSIST

Intelligent: 0-5 levels of pedal assist

LIGHTS

Integrated front 6V-60V LED lamp / Rear LED taillight

THROTTLE

Thumb throttle

FRAME

FRAME

Aluminum Alloy 6061 Full Suspension (17" or 19" variants)

FRONT FORK

RST GUIDE 75mm-travel

REAR SHOCKS

KS-388RL 48mm-travel

DRIVETRAIN

FREEWHEEL

Shimano Derailleur ALIVIO 9-speed gear shift system

GEARING

Shimano 11-34T

SHIFTERS

Shimano 9-speed Push-Button

SPROCKET

42T 7075 CNC chain-wheel crank with guard

CRANK

170mm forged alloy

COMPONENTS

BRAKES

Front/Rear EUNORAU Design 180mm Hydraulic Disc Brakes

BRAKE LEVERS

Hydraulic Disc Brake Levers with motor cut-off switch

SEATPOST

Promax aluminum alloy

COCKPIT

HANDLEBAR

Adjustable Stem for Comfort (Matte Black)

STEM

Eunorau TDS-D507G-8FOV

SADDLE

Comfortable

PEDALS

High quality Nylon with reflectors

WHEELS/TIRES

RIMS

Black 26” alloy

TIRES

Kenda Krusade Sport Tires 26” * 4.0” with K-Shield Protection

PARAMETERS

MAX. RANGE

128 kms (with SAMSUNG 48V/17Ah + Second Battery 17Ah)

CHARGING TIME

4-6 Hours

MAX. SPEED

48 km/h (30 mph)

MAX. LOAD

200 kg (440 lbs.)

BOX DIMENSIONS

L*W*H 1560*325*880 mm

WEIGHT

Net 32 kg (70 lbs.)
