Eunorau NEW-TRIKE 48V500W 20'' Fat Tire Folding Step-Thru Electric Trike
BATTERY ACCESSORIES:
>>> Extra Primary Battery (Downtube): 48V 14Ah or 17Ah BATTERY (for Replacement & Upgrades)
INVENTORY NOTE:
IN STOCK at the central warehouses. Typically, shipping takes 5-10 days to deliver this product to the Lethbridge Office or anywhere in Canada.
DESCRIPTION:
The Eunorau NEW-TRIKE is an electric vehicle with three wheels of fat tire fun. Beyond the fun factor, a trike adds a level of balance, safety and stability to riders that a bike cannot meet. Trikes are much larger than bikes, however an advantage of the NEW-TRIKE is that it can fold down to a size that fits many trunks and hatchbacks. Built with a powerful 500W front-hub motor and high-capacity 12.5Ah battery, the NEW-TRIKE is a reliable trekker whether on a trail or street. Add to that, a 7-speed Shimano Tourney drive train, and you’ll be climbing hills or cruising along on pedal-assist. The ample treads of the CST 3-inch fat tires take on snow, mud and off-road trekking. While the step-through frame design makes it easy to mount and dismount.
Eunorau, established in 2010, has over a decade of electric bike manufacturing experience. As the name suggests (EU-NOR-AU), has a strong distributer network across Europe, North America and Australia. They are known for premium quality ebikes and ebike conversion kits, but especially their line of fat tire ebikes. Phoenix Fitness is an authorized dealer of Eunorau products in Canada.
KEY FEATURES:
- FRONT-MOTOR, HIGH-CAPACITY BATTERY: Driving the NEW-TRIKE is the Shengyi 500W front-hub motor with 750W of peak power, 80Nm of torque and a max speed of 29 km/h. A high-capacity 12.5Ah battery gives you good range to take you exploring. The locking removable battery located beneath the bike’s saddle, not only keeps the center of gravity low and overall weight well-balanced but makes it convenient to charge.
- FAT TIRE TRACTION: 20" * 3.0" Kenda CST tires have a deep, spacious tread great for grabbing, draining and discharging loose terrain. These fat tires adapt expertly to snow, sand, mountain trails and cross-country trekking.
- FOLDING FRAME: Having a folding system within the main frame tube and telescoping stem (0-150mm adjustment, max height 450mm) is great feature for transporting and storing your trike. The step-thru design makes mounting and dismounting an ease.
- SHIFTING: With this Shimano 7-speed freewheel, a large cog benefits up-hill riding, while a smaller cog is best for high-speed riding. Speed can be easily adjusted with the pedal-assist system.
- RELIABILITY: Promax disc brakes require less effort to stop a bike and generate less heat. Disc brakes are easy to control and provide reliable stopping power in wet and dry conditions. The NEW-TRIKE has a dual brake system that ensures safe braking at high speeds that triggers the automatic motor cut-off. The trike also has an integrated brake taillight making stopping and slowing down all the safer.
- LARGE REAR BASKET: At the rear of the trike is an extra-large alloy basket with a solid wooden base to securely store items.
- SUGGESTED RIDER HEIGHT: 155 cm – 185 cm (5’1” – 6’1”)
NEW-TRIKE |
|
SPECIFICATIONS |
|
SYSTEM |
|
MOTOR |
Front Shengyi 48V/500W brushless hub motor (high torque) |
BATTERY |
Lithium-ion, 48V/12.5Ah |
CHARGER |
2.0Ah Smart Charger (US/Canadian Standard) |
DISPLAY |
C3 LCD |
CONTROLLER |
48V/20A |
PEDAL ASSIST |
Intelligent: 0-5 levels of pedal assist |
LIGHTS |
Front LED lamp / Rear LED taillight |
THROTTLE |
Twist-grip throttle |
FRAME |
|
FRAME |
Aluminum Alloy 6061 |
DRIVETRAIN |
|
FREEWHEEL |
Shimano TOURNEY Derailleur 7-speed gear shift system |
GEARING |
Shimano 14-28T |
SHIFTERS |
Shimano 7-speed Push-Button |
SPROCKET |
46T chain-wheel crank |
CRANK |
170mm forged aluminum alloy |
COMPONENTS |
|
BRAKES |
Front/Rear Promax 160mm Disc Brakes |
BRAKE LEVERS |
Promax Disc Brakes Lever with motor cut-off switch |
SEATPOST |
Aluminum alloy |
COCKPIT |
|
HANDLEBAR |
Adjustable stem (matte black) |
STEM |
Quick release, folding, 28.5mm clamp diameter |
SADDLE |

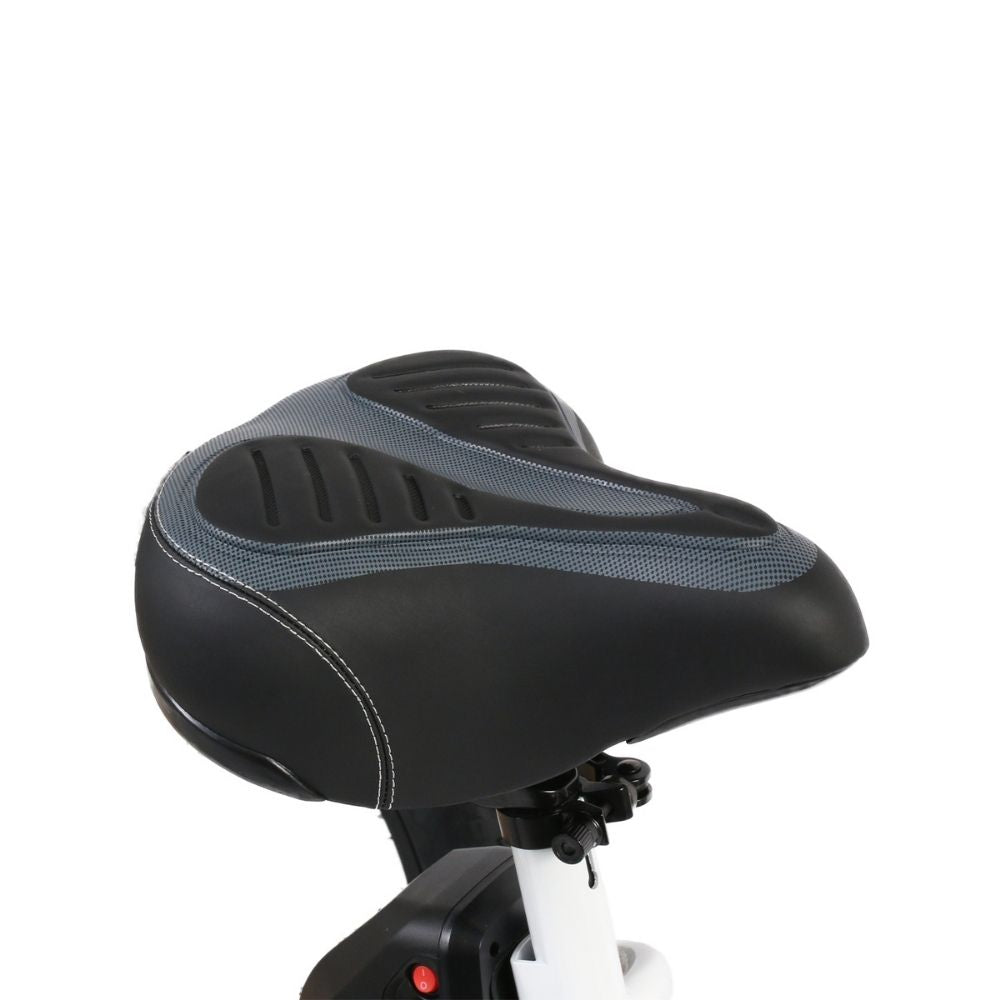

Comfortable saddle |
PEDALS |
Aluminum alloy |
WHEELS/TIRES |
|
RIMS |
Black 20” alloy |
TIRES |
CST Tires 20” * 3.0” |
PARAMETERS |
|
MAX. RANGE |
48-64 km/charge (40-50 miles) |
CHARGING TIME |
4-6 Hours |
MAX. SPEED |
29 km/h (18 mph) |
MAX. LOAD |
200 kg (440 lbs.) |
BOX DIMENSIONS |
L*W*H 1130*700*840 mm |
WEIGHT |
Net 36 kg (80 lbs.) |
DIMENSIONS:
- SUGGESTED RIDER HEIGHT: 5'1" to 6'1" (155 cm to 185 cm)
- TRIKE: 31" (79 cm) wide, 72" (183 cm) long, 30" (76 cm) tall at the seat post, 70" (178 cm) tall at the handlebars. Note that the seat post and handlebars are adjustable for height.
- FOLDED TRIKE: 30" (76 cm) wide, 50" (127 cm) long, 34" (86 cm) tall.
- REAR BASKET: 21.5" (55 cm) wide, 17.5" (44 cm) long, 10.5" (27 cm) tall.
